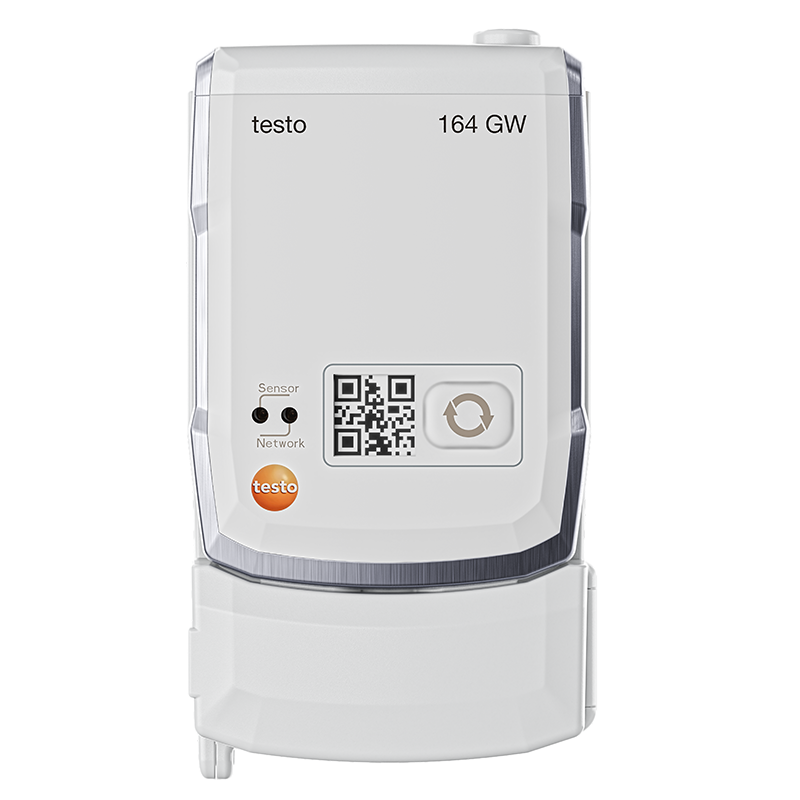

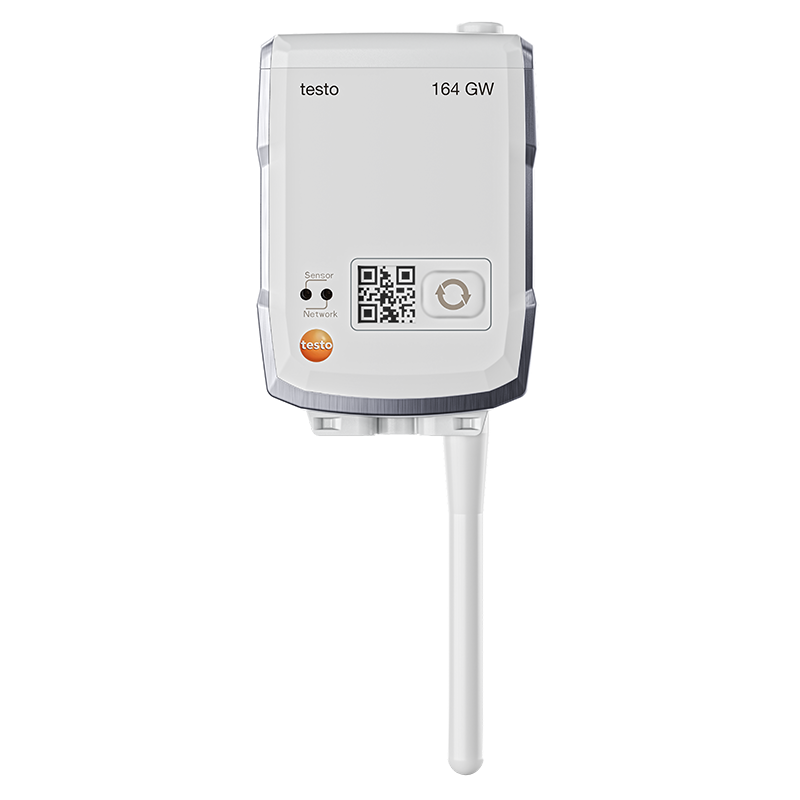

testo 164 GW WiFi gateway from the front
testo 164 GW WiFi gateway right side
testo 164 GW WiFi gateway with wall bracket

testo 164 GW – Gateway with WiFi connection for mini loggers

WiFi gateway for cloud-based temperature and humidity monitoring

  • Dedicated gateway for testo 164 data loggers
  • Enables secure and continuous data logging in the cloud service
  • Easy configuration

 2 595:-

Finns i lager

Finns i lager

SKU: 0572 1648 01 Categories: , , , , , , , Tags: , Brand:

testo 164 GW – Gateway with WiFi connection for mini loggers

The testo 164 GW is used together with the mini data loggers of the testo 164 series and ensures a stable wireless transmission of measurement data to the cloud service Testo Saveris Cloud. The gateway connects to a WiFi network and communicates with the data loggers via radio signal. Measurement data is automatically sent from the loggers to the gateway, which in turn transfers the information to the cloud. The pairing between the gateway and the loggers is easily done at the push of a button, making installation quick and easy.

The handy testo 164 data loggers combined with a dedicated WiFi gateway offer a simple and discreet solution for indoor climate monitoring. As the loggers do not need their own WiFi connection, they can be made compact and placed discreetly in places where they should not attract attention. In addition, they have an impressive battery life of 8 years. All readings are automatically transferred via the gateway to the Testo Saveris Cloud service, giving you real-time data, alarm management and analytics in one place – giving you full control over temperature and humidity in your premises.

testo Saveris Cloud

With testo Saveris Cloud, climate monitoring in your premises is both simple and reliable. Create an account, connect your data loggers and set alarm limits – then the system takes care of the rest automatically. If the limits are exceeded, you will immediately receive an alarm via push notifications from the testo Smart App or via email.

All measurement data from all connected loggers is continuously transferred to the cloud and can be followed in real time on mobile, tablet or computer. The platform provides an overview of all your measurement points, making it easy to keep track of temperature and humidity in your premises. By connecting the cloud service to the testo Smart app, you also get additional features, such as quick configuration, easy access to data and push notifications for alarms. You can also connect WiFi loggers from the testo 160 and 162 series to the same account, providing maximum flexibility and integrated monitoring, customized to specific needs.

Included in delivery

testo 164 GW WiFi gateway, wall mount, power supply unit with cable and brief user manual.



Connectivity
StandardSub 1 GHz / WLAN
General
Memory0
Measuring cycle & communication cyclePermanent connection
Operating temperature0 °C...+50 °C
Storage temp-30 °C...+60 °C
Voltage supplyExternal power supply 4xAA backup battery
Battery life
Switch-off after 10 minutes (measurement & communication cycle of 15 min)
Size69 x 105 x 29 mm
Weight220 g (including batteries)
Protection classIP65
Guarantee2 years
There are no probes for this item.
Icon
Datablad testo 164
1004 downloads2.32 MB
